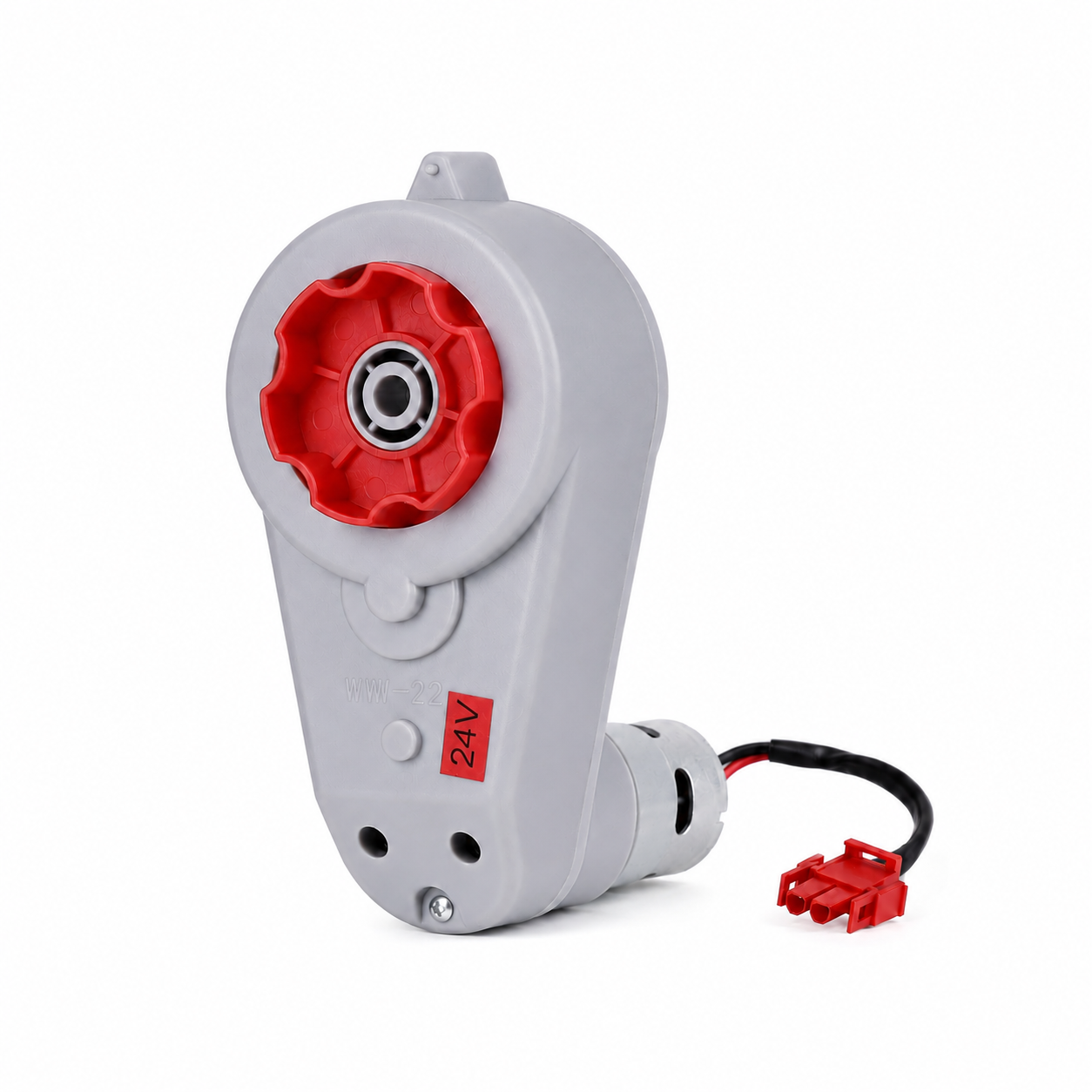

24V RS550 WW-1D Drive Motor for CAT Dump Truck & Golf Cart

Replace a weak, noisy, overheated, or damaged drive motor and help restore smooth driving performance for compatible ANPABO ride-on vehicles.

Key Features

• Original Replacement Drive Motor: Designed for compatible ANPABO ride-on vehicles, including the CAT Licensed Dump Truck and Golf Cart models.
• Built-in Thermal Protector: Equipped with a 17AM-D 85°C thermal protector to add an extra layer of protection and help reduce the risk of motor overheating during use.
• 24V RS550 Motor: Helps restore normal driving power when the original motor becomes weak, noisy, damaged, or stops working properly.
• WW-1D Gearbox Design: Built with the WW-1D gearbox structure for compatible ANPABO 24V ride-on vehicles.
• Ready for Replacement: Comes with the matching connector and wiring terminals for easier installation.

Compatible ANPABO Models

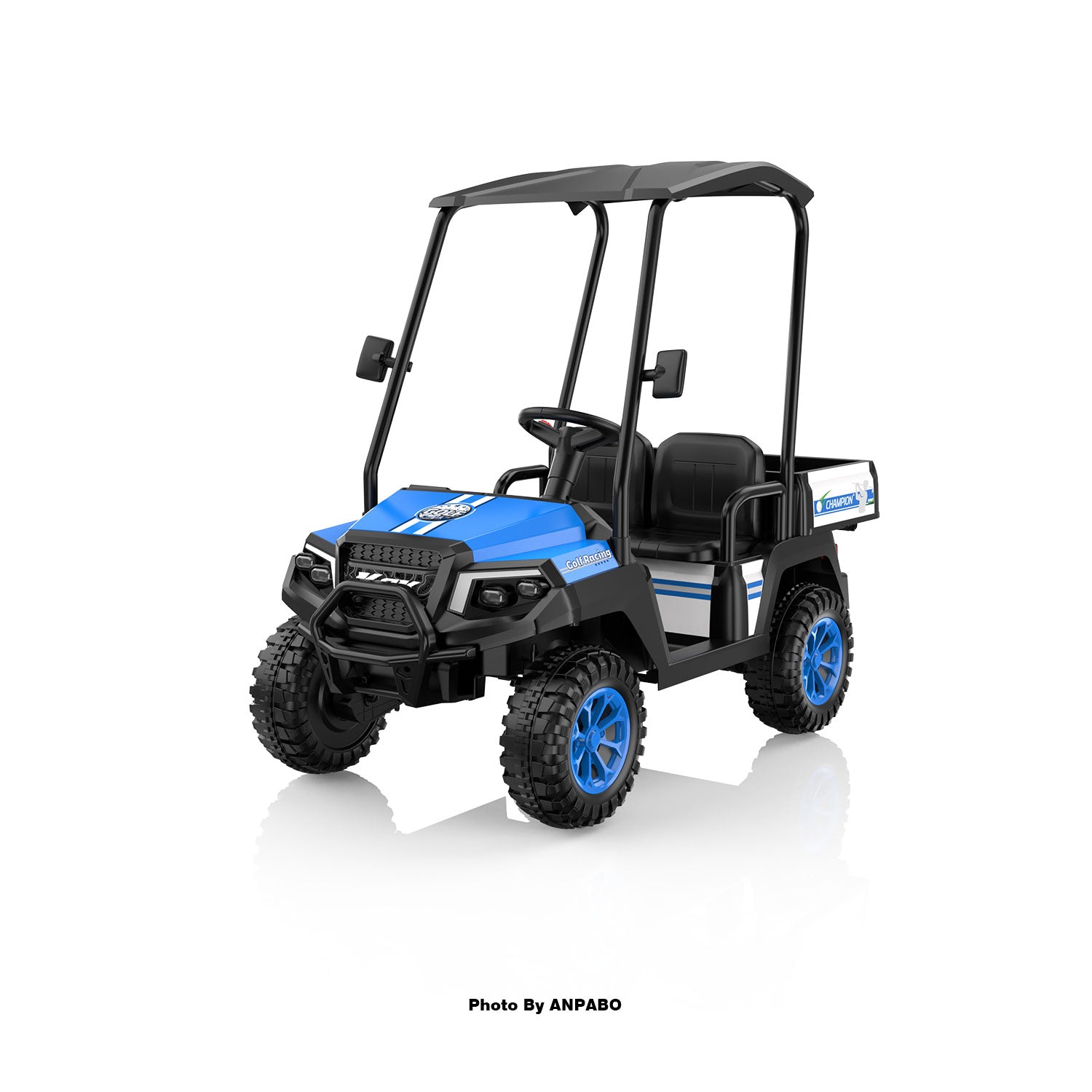

• CAT Licensed 24V Ride-On Dump Truck
• ANPABO 24V Golf Cart / XMX650 Golf Cart

This motor may also fit other kids ride-on vehicles that use the same motor model, gearbox size, voltage, connector, and wiring terminals.

Specifications

• Gearbox Model: WW-1D
• Motor Model: RS550
• Voltage: 24V DC
• Speed: 13,500 RPM
• Thermal Protector: 17AM-D 85°C
• Motor Length: 7.48 in
• Gear Inner Diameter: Ø2.28 in
• Shaft Hole Diameter: Ø0.28 in

When to Replace the Drive Motor

• The vehicle drives weakly or loses power on one side
• The original motor makes unusual noise
• The motor overheats or stops working
• The ride-on car does not move normally even when the battery is fully charged

Note Before Purchase

For ANPABO CAT Licensed Dump Truck and Golf Cart owners, this WW-1D motor is the intended replacement part. If you are using it for another ride-on vehicle, please compare your original motor model, voltage, gearbox size, connector, and wiring terminals before ordering.

Need help with installation? Please contact us at support@anpabotoy.com. Our support team will be happy to help you confirm the part or provide installation guidance.
